IPC-HDW2439T-AS-LED-S2 Full-Color & IPC-HDW2449TM-S-IL 4MP POE Built-In Mic Smart Dual Light SMD plus Wizsense IP Camera
IPC-HDW2439T-AS-LED-S2 Full-Color & IPC-HDW2449TM-S-IL 4MP POE Built-In Mic Smart Dual Light SMD plus Wizsense IP Camera
Impossibile caricare la disponibilità di ritiro
DELIVERY POLICY:
1-3pcs +0usd = china post shipping for free
1pcs + 19usd = DHL shipping (EMS fedex optional)
2pcs + 24usd = DHL shipping (EMS fedex optional)
3pcs + 29usd = DHL shipping (EMS fedex optional)
4pcs or more = FREE DHL shipping (EMS UPS Fedex optional)
Incase anything i can help you with , pls feel free to contact our servicer, wish you happy shopping here!

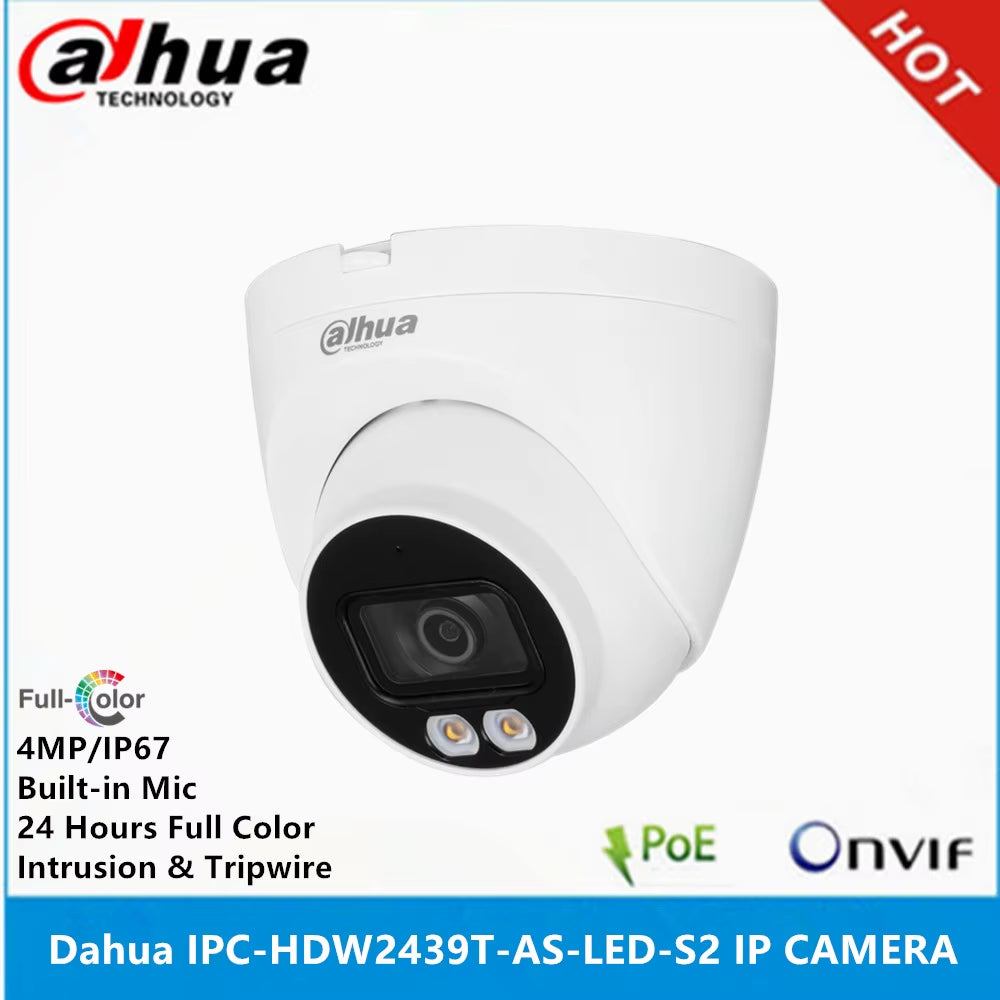

IPC-HDW2439T-AS-LED-S2
4MP Lite Full-color Fixed-focal Eyeball Network Camera
> 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
> Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in warm lights, max. illumination distance: 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
> Built-in Mic
> Supports max. 256 GB Micro SD card
> 12V DC/PoE power supply
> IP67 protection
Camera | |||||
Image Sensor |
1/3”4Megapixel progressive CMOS |
||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Minimum Illumination |
0.004 Lux@F1.0 |
||||
S/N Ratio |
> 56 dB |
||||
Illumination Distance |
30 m (98.4 ft) |
||||
Illuminator On/Off Control |
Auto/Manual |
||||
Illuminator Number |
2 (Warm light) |
||||
Lens | |||||
Lens Type |
Fixed-focal |
||||
Mount Type |
φ14 |
||||
Focal Length |
2.8 mm 3.6 mm |
||||
Max. Aperture |
2.8 mm: F1.0 3.6 mm: F1.0 |
||||
Field of View |
2.8 mm: 96° (Horizontal) × 51° (Vertical) × 115° (Diagonal) 3.6 mm: 81° (Horizontal) × 44° (Vertical) × 97° (Diagonal) |
||||
Iris Type |
Fixed |
||||
Close Focus Distance |
2.8 mm: 1.3 m (4.3 ft) 3.6 mm: 1.8 m (5.9 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8mm |
56.0 m (183.7 ft) |
22.4 m (73.5 ft) |
11.2 m (36.7 ft) |
5.6 m (17.1 ft) |
|
3.6mm |
72.0 m (236.2 ft) |
28.8 m (94.5 ft) |
14.4 m (47.2 ft) |
7.2 m (23.6 ft) |
|
Smart event | |||||
General IVS Analytics |
Tripwire;intrusion |
||||
Video | |||||
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
Video Frame Rate |
Main stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
||||
Stream Capability |
2 streams |
||||
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 32 kbps–6144 kbps |
||||
Day/Night |
Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
Gain Control |
Auto/Manual |
||||
Noise Reduction |
3D DNR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest(RoI) |
Yes (4 areas) |
||||
Smart Illumination |
Yes |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio | |||||
Built-in MIC |
Yes |
||||
Audio Compression |
G.711A; G.711Mu; G.726; AAC |
||||
Alarm | |||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception |
||||
Network | |||||
Network |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; Bonjour |
||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||
User/Host |
20 (Total bandwidth: 72 M.) |
||||
Storage |
Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP |
||||
Browser |
IE Chrome Firefox |
||||
Management Software |
Smart PSS; DSS; DMSS |
||||
Mobile Phone |
IOS; Android |
||||
Certification | |||||
Certifications |
CE-LVD: EN62368-1 |
Power | |
Power Supply |
12V DC/PoE (802.3af) |
Power Consumption |
< 7.4W |
Environment | |
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH |
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
Protection Grade |
IP67 |
Structure | |
Casing |
Inner core: metal; cover: plastic ( pedestal: plastic ) |
Dimensions |
100.9 mm × Φ109.9 mm (4.0" × Φ4.3") |
Net Weight |
0.365 kg (0.8 lb) |
Gross Weight |
0.527 kg (1.2 lb) |

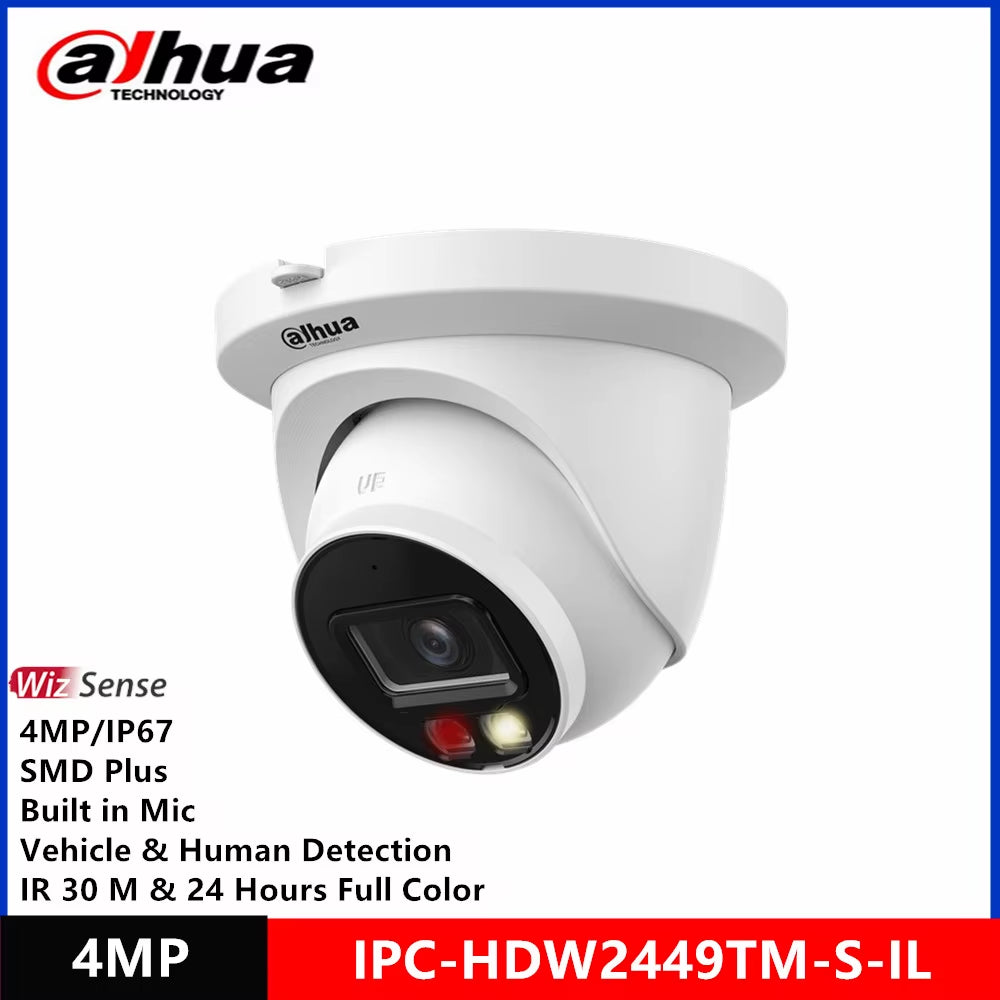

IPC-HDW2449TM-S-IL
4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
Camera | |||||
Image Sensor |
1/2.9" CMOS |
||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.008 lux@F1.6 (Color, 30 IRE) |
||||
S/N Ratio |
>56 dB |
||||
Illumination Distance |
30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light) |
||||
Illuminator On/Off Control |
Auto; Manual |
||||
Illuminator Number |
1 (IR LED); 1 (Warm light) |
||||
Lens | |||||
Lens Type |
Fixed-focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8 mm; 3.6 mm |
||||
Max. Aperture |
F1.6 |
||||
Field of View |
2.8 mm: H: 95°; V: 52°; D: 114° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m (208.66 ft) |
25.4 m (83.33 ft) |
12.7 m (41.67 ft) |
6.4 m (20.99 ft) |
|
3.6 mm |
85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m (56.10 ft) |
8.5 m (27.89 ft) |
|
Intelligence | |||||
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
Video | |||||
Video Compression |
H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
Video Frame Rate |
Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) |
||||
Stream Capability |
2 streams |
||||
Resolution |
4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 32 kbps–6144 kbps |
||||
Day/Night |
Auto(ICR)/Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
Gain Control |
Auto;Manual |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio | |||||
Built-in MIC |
Yes |
||||
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
||||
Alarm | |||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD |
||||
Network | |||||
Network Port |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
||||
Interoperability |
ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
||||
User/Host |
6 (Total bandwidth: 36 M) |
||||
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB) |
||||
Browser |
IE |
||||
Management Software |
DSS;DMSS |
||||
Mobile Client |
iOS;Android |
||||
Cyber Security |
Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
||||
Certification | |||||
Certifications |
CE-LVD: EN 62368-1; |
||||
Power | |||||
Power Supply |
12 VDC/PoE (802.3af) |
||||
Power Consumption |
Basic: 2.1 W (12 VDC); 2.5 W (PoE) |
||||
Environment | |||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Operating Humidity |
≤95% |
||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||
Protection |
IP67 |
||||
Structure | |||||
Casing Material |
Inner core: Metal; |
||||
Product Dimensions |
99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
||||
Net Weight |
0.46 kg (1.01 lb) |
||||
Gross Weight |
0.65 kg (1.43 lb) |
